General Purpose Computer (GPC)

G P C

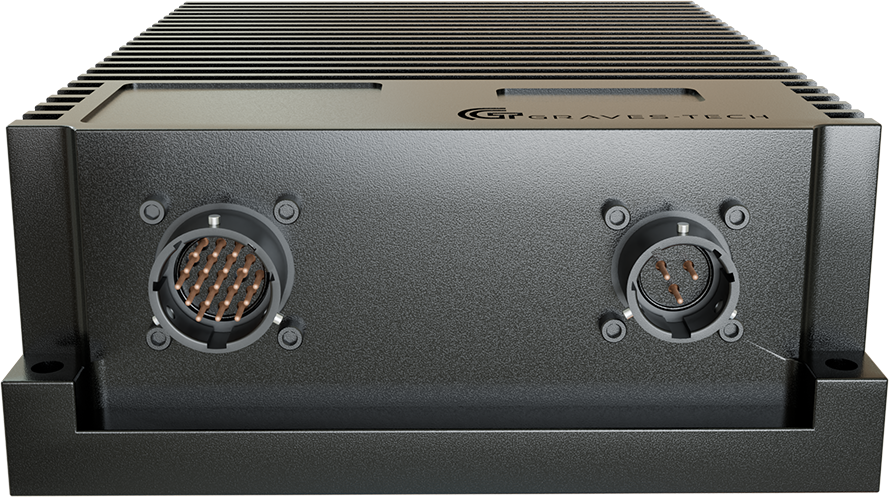

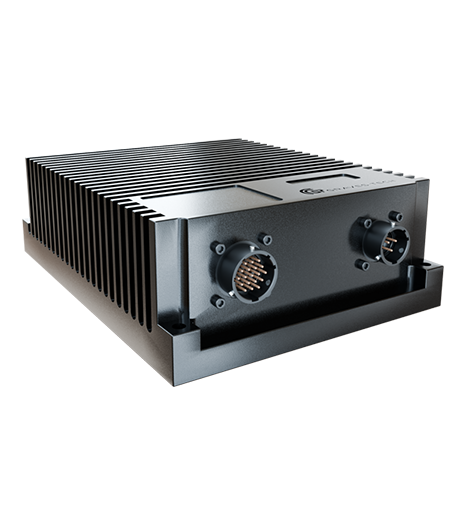

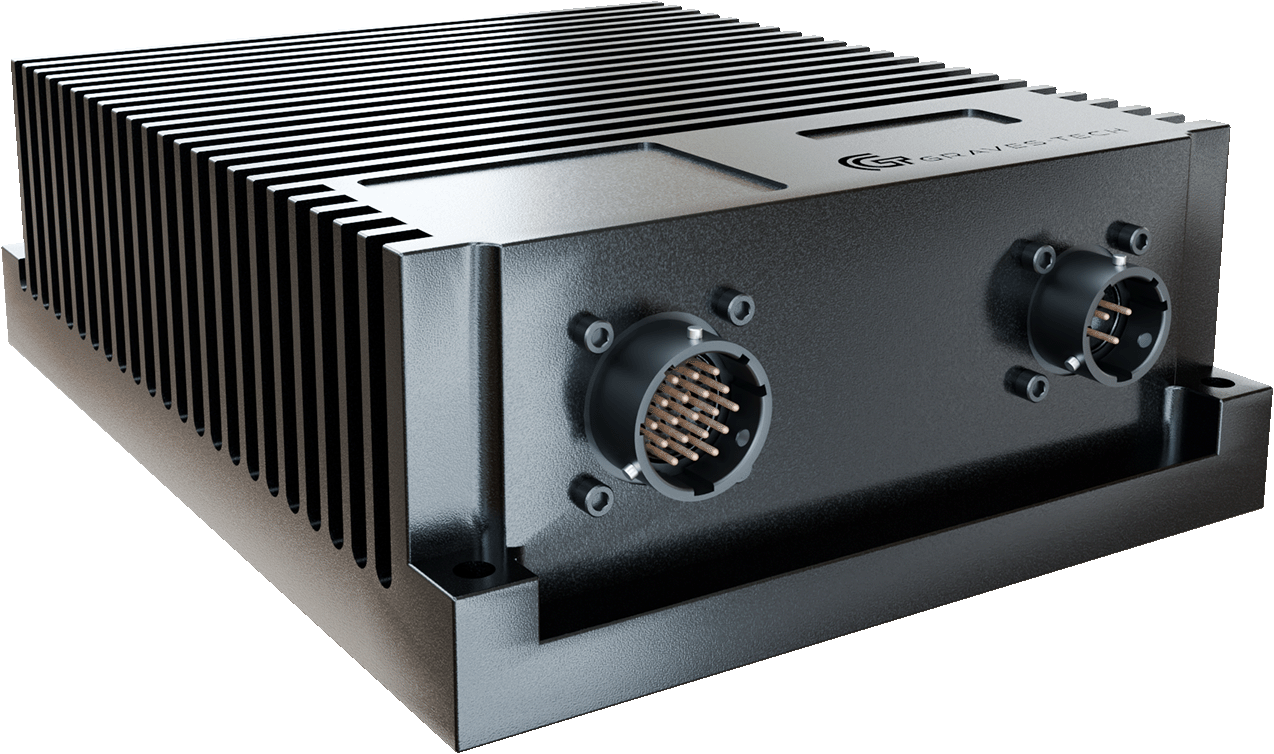

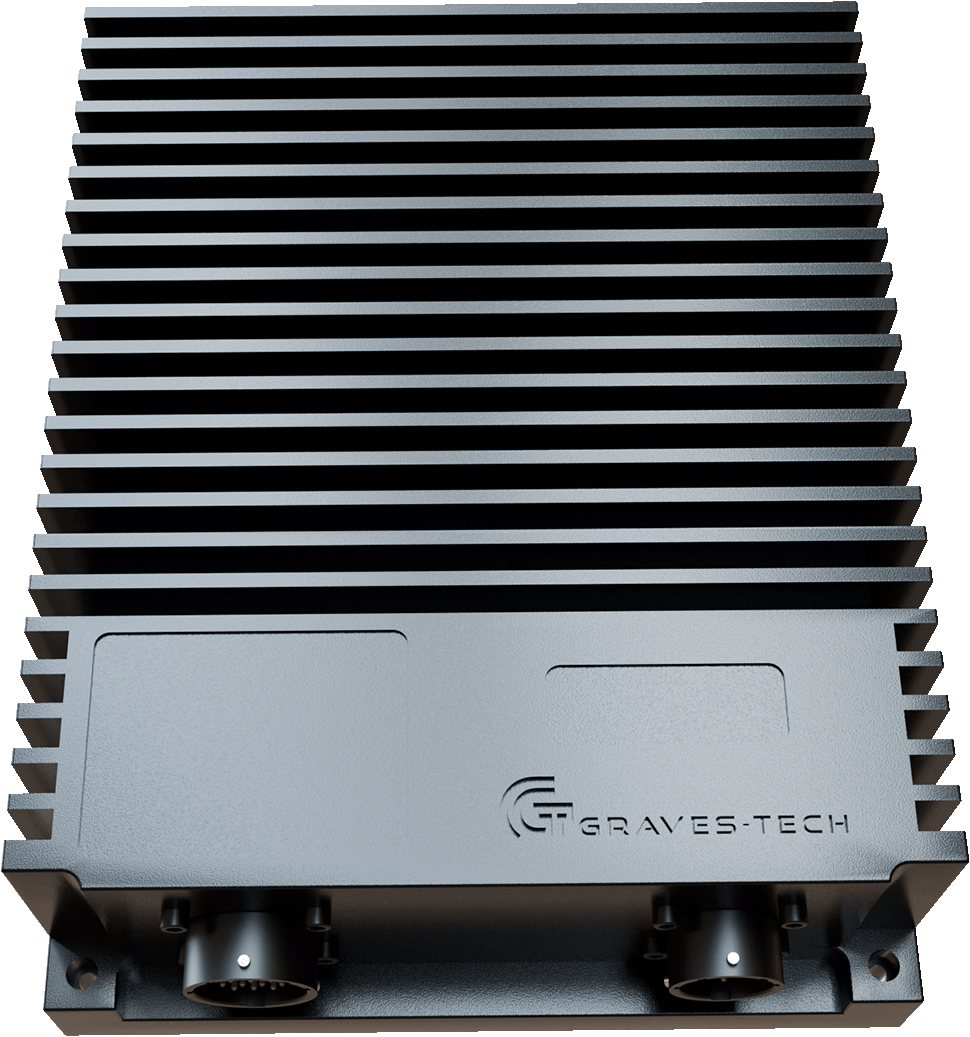

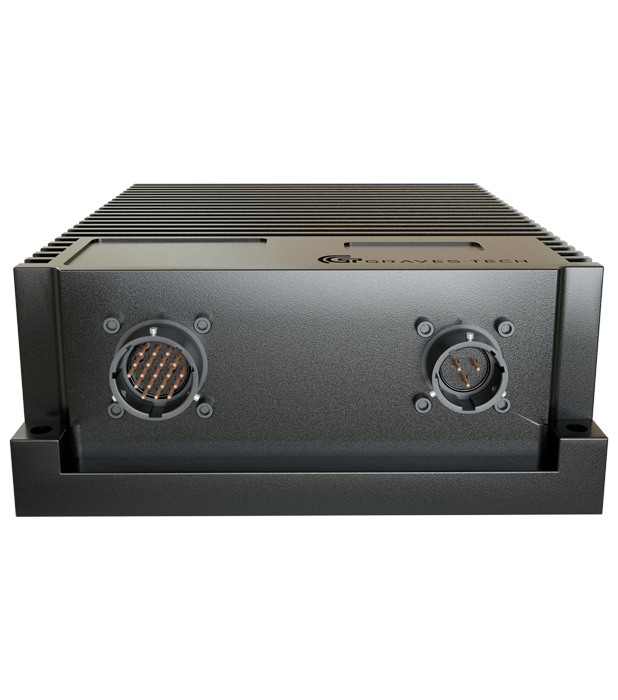

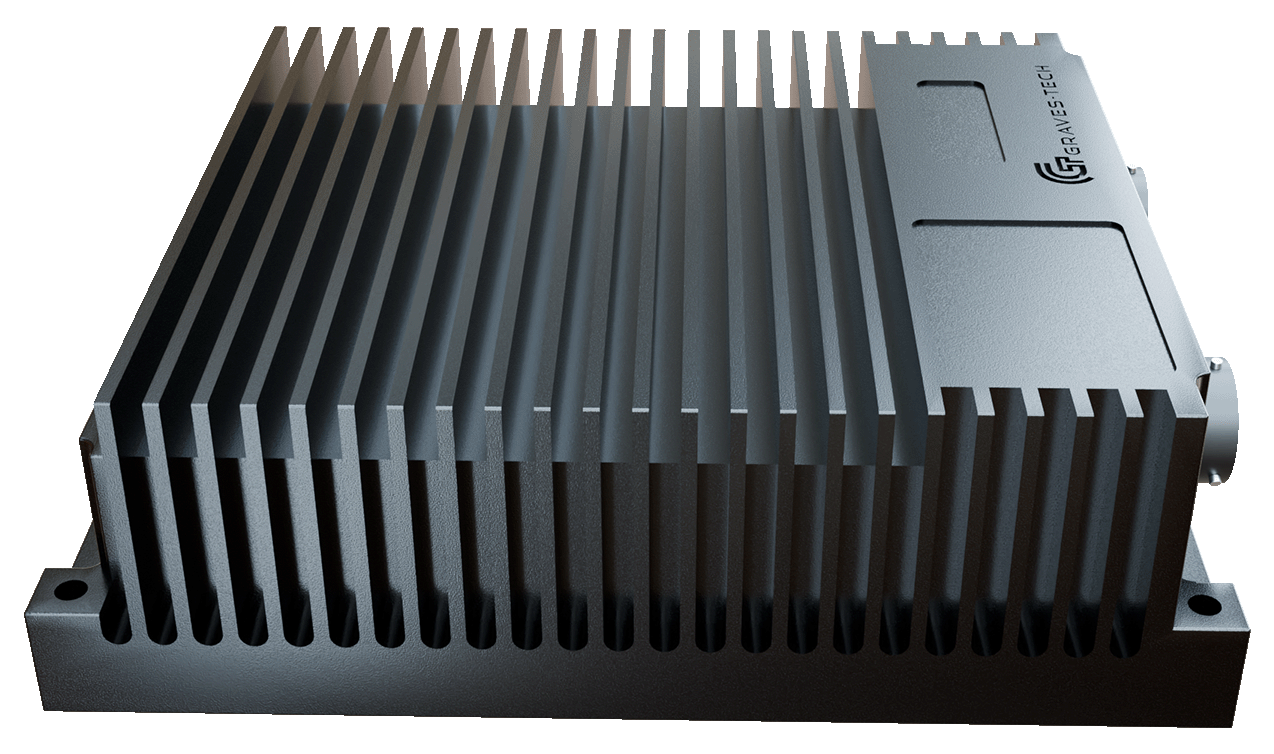

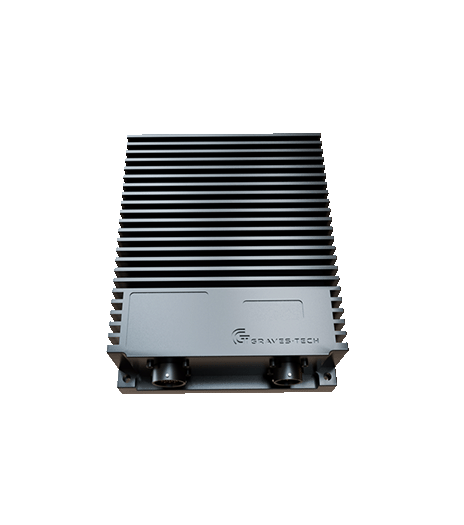

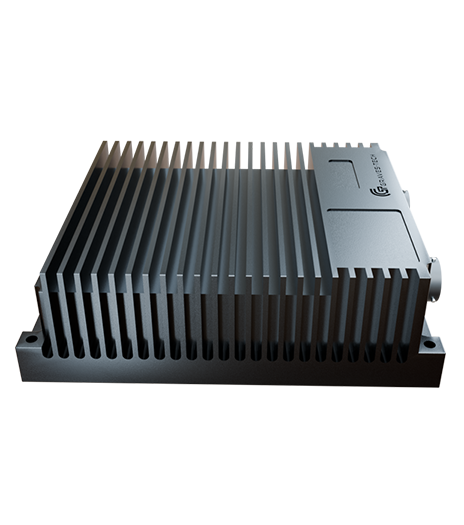

The GRAVES-TECH GPC housing is a two-piece passive cooled enclosure for the full range of GPC modules and their carrier cards. The GPC housing includes provisions for a customizable IO module to support various families of connectors and shell sizes including 38999 and 26482. The customizable IO Module provides the required filtering and transient suppression to comply with MIL-STD-461 and DO-160. The GPC housing also includes provisions for a MIL-STD-704 compliant 28 VDC supply to support the GPC modules and carrier cards.The GRAVES-TECH GPC housing provides a means to transform a COTS small form factor GPC platform into a rugged MIL-STD-810 and MIL-STD-461 compliant LRU. The GRAVES-TECH GPC housing also includes captive mounting hardware to allow the GPC housing to attach to traditional nut plates in the intended vehicle.

  • Modular Design

  • MIL-STD-461 & DO-160 Compliant

  • Wide Operating Temperature

  • Supports 38999 & 26482

  • Unparalleled Performance

  • MIL-STD-704 compliant 28 VDC

Download

GPC_specs.pdf

Size: 3.64MB

Operating System Linux, Windows
Operating Temperature Industrial grade by Screening (XT) -40°C to +85°C
Shock & Vibration IEC/EN 60068-2-6 (Non operating Vibration, sinusoidal, 10Hz-4000Hz, +/-0.15mm, 2g),
IEC/EN 60068-2-27 (Non operating Shock Test, half-sinusoidal, 11ms, 15g)
Filtering and Transient Suppression MIL-STD-461 & DO-160
Water Proofing IP66
Dimensions 6" x 8" x 2.5" (152.4mm x 203.2mm x 63.5mm)
Weight LB (KG) TBD
Power VCC: 4.75 - 14V
BENEFITS
Engineered to deliver unparalleled performance in the most demanding environments
Modular, multi-architecture design
Ultra-compact and lightweight
Up to -40°C to +85°C operating temperature
Open standards architecture designed using a modular open systems approach (MOSA)


APPLICATION GUIDELINES
Military Vehicles
Combat Management Systems
Industrial APPLICATIONS
Transportation
Encrypted Communications
