Advanced Video Interface Adapter (AVIA)

A V I A

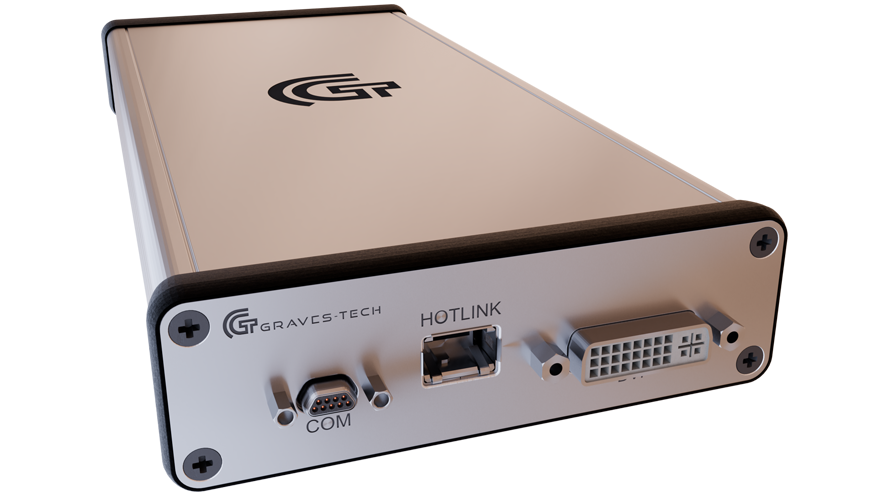

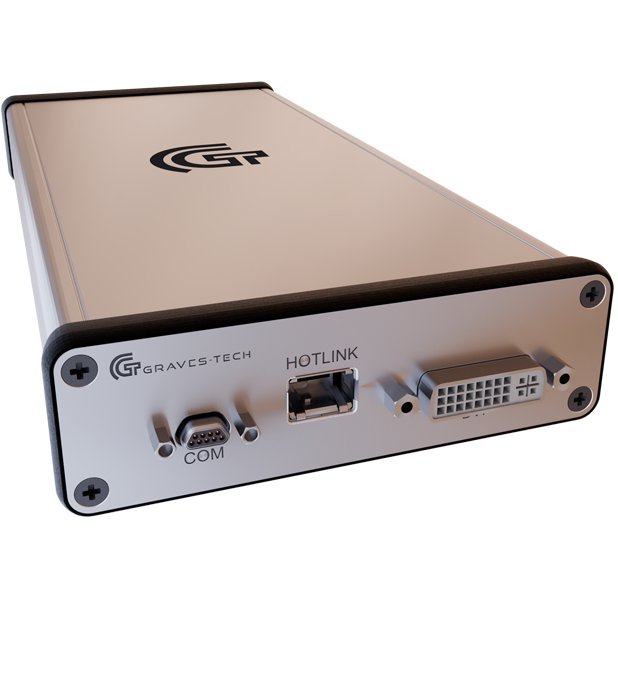

The AVIA is a versatile digital video adapter. It allows for the real-time conversion of avionics standard digital video formats transmitted over HOTLink physicals. The video can be converted to standard commercial DVI formats. This enables commercial DVI monitors to be used in development and testing instead of high cost avionics grade displays. The AVIA also enables standard PC video to be used in place of actual platform video data sources or sensors. This capability can be used to generate a DVI video test pattern or simulation that can be sent to an avionics display. The AVIA unit integrates an FPGA with PanelLink, HOTLink, and Fiber Channel transceivers. The AVIA is managed by a micro controller. Both the micro controller and the FPGA are fully programmable to support many unique user configurations. The PanelLink, HOTLink, and Fiber Channel transceivers can be configured as receivers or transmitters.

  • HOTLink Serial Data

  • Industry Standard IDE

  • 8B10B Encoding

  • Built-In Self-Test

  • Unparalleled Performance

  • MIL-STD-704 compliant 12 VDC

Download

AVIA_specs.pdf

Size: 2.3MB

Video Standards Supported Avionics DV1 I, II, and III
Serial Data Speeds Up to 1.5Gb/s serial data rate

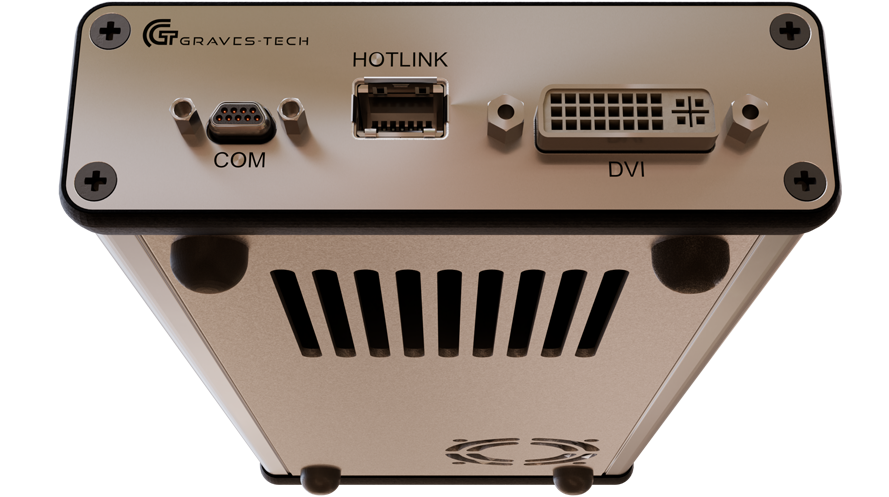

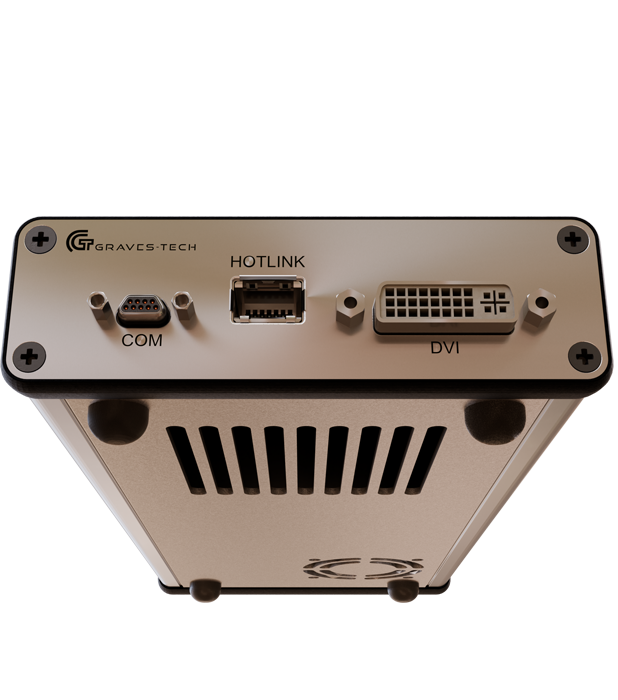

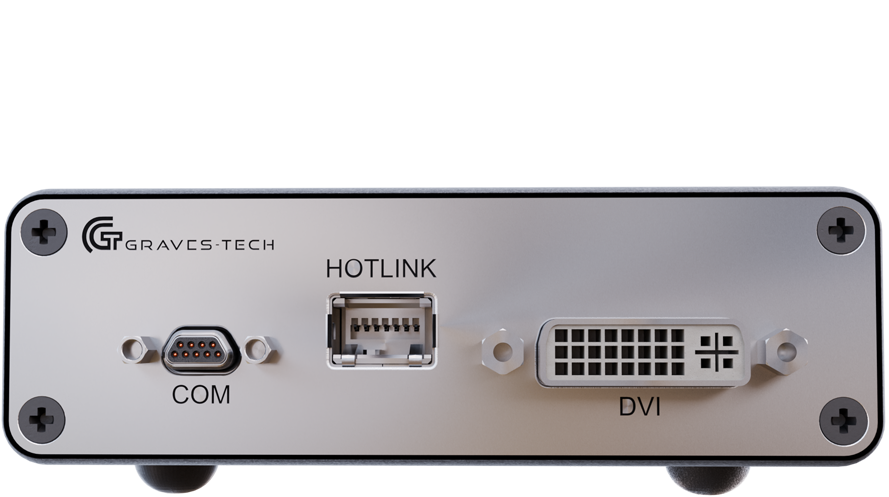

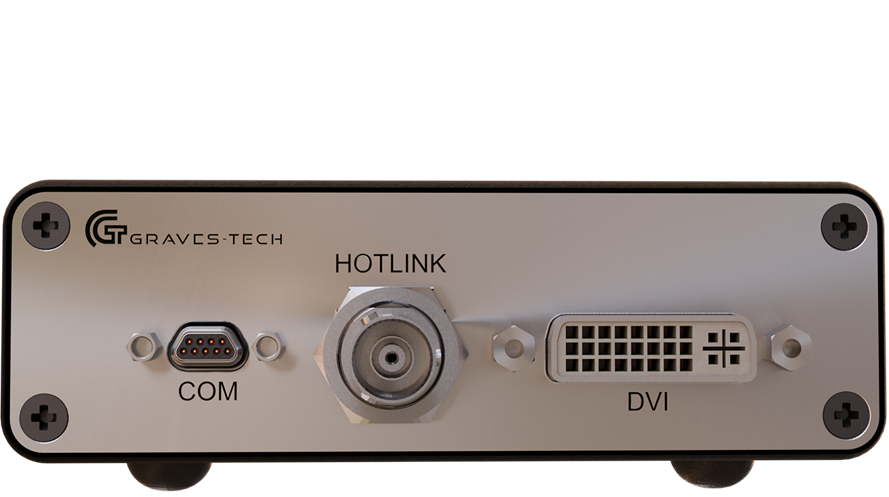

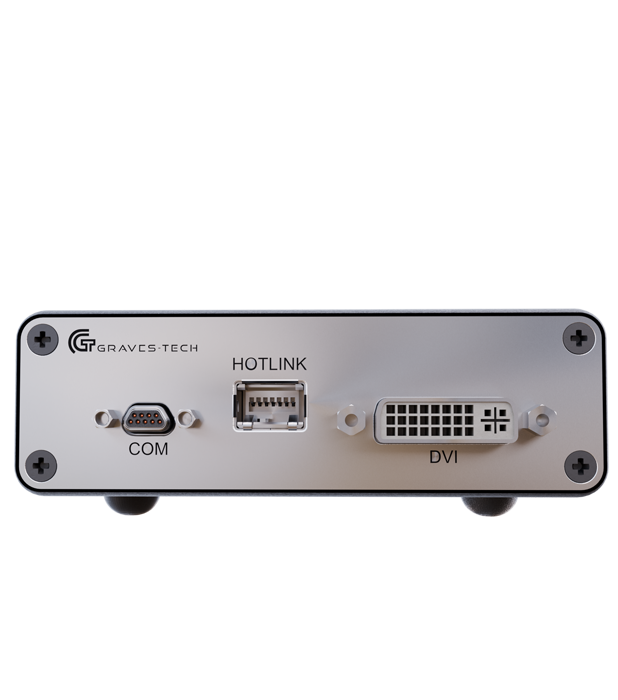

Front Panel I/O Second generation HOTLink 1,2, and Fiber Channel, backward compatible, COM, DVI
Supported Interfaces Supports AH-64D DVI-I, DVI-II, DVI-III (D-MTADs and Displays), F/A-18 MFCDU, and AIM-9x Seeker Interfaces
Supported Encoding 8B10B
Transceiver Silicon Image, DVI video
Color Depth 24-bit/pixel, 16.7M True Color
MP/s Up to 165 Mpixel/second
FPGA
Industry Standard Integrated Software Environment (ISE)
Extensive DSP library
Microcontroller
Industry Standard Integrated Development Environment (IDE)
Extended ISA


APPLICATION GUIDELINES
Military Vehicles
Combat Management Systems
Industrial APPLICATIONS
Transportation
Encrypted Communications
